NVIDIA GeForce GTX Titan Pictured

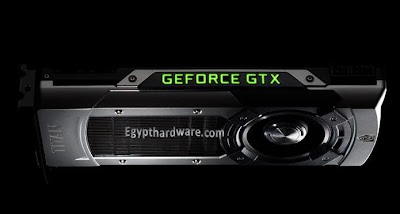

Here it is, folks; the first pictures of NVIDIA's newest pixel crunching dreadnought, the GeForce GTX Titan. Pictures leaked by various sources east of the Greenwich Median reveal a reference board design that's similar in many ways to that of the GeForce GTX 690, thanks to the magnesium alloy cooler shroud, a clear acrylic window letting you peep into the aluminum fin stack, and a large lateral blower. The card features a glowy "GeForce GTX" logo much like the GTX 690, draws power from a combination of 6-pin and 8-pin PCIe power connectors, and features two SLI bridge fingers letting you pair four of them to run 3DMark Fire Strike as if it were a console port from last decade.

The GeForce GTX Titan PCB reveals that NVIDIA isn't using a full-coverage IHS on the GK110 ASIC, rather just a support brace. This allows enthusiasts to apply TIM directly on the chip's die. The GPU is wired to a total of twenty four 2 Gbit GDDR5 memory chips, twelve on each side of the PCB. The card's VRM appears to consist of a 6+2 phase design which uses tantalum capacitors, slimline chokes, and driver-MOSFETs. The PCB features a 4-pin PWM fan power output, and a 2-pin LED logo power output that's software controllable.

Given the rumored specifications of the GTX Titan, the card could be overkill for even 2560 x 1600, and as such could be designed for 3DVision Surround (3 display) setups. Display outputs include two dual-link DVI, an HDMI, and a DisplayPort.

According to most sources, the card's specifications look something like this:

28 nm GK110-based ASIC

2,688 CUDA cores ("Kepler" micro-architecture)

224 TMUs, 48 ROPs

384-bit GDDR5 memory interface

6 GB memory

Clocks:

o 837 MHz core

o 878 MHz maximum GPU Boost

o 6008 MHz memory

250W board power

Source: Videocardz.com, Egypthardware.com
